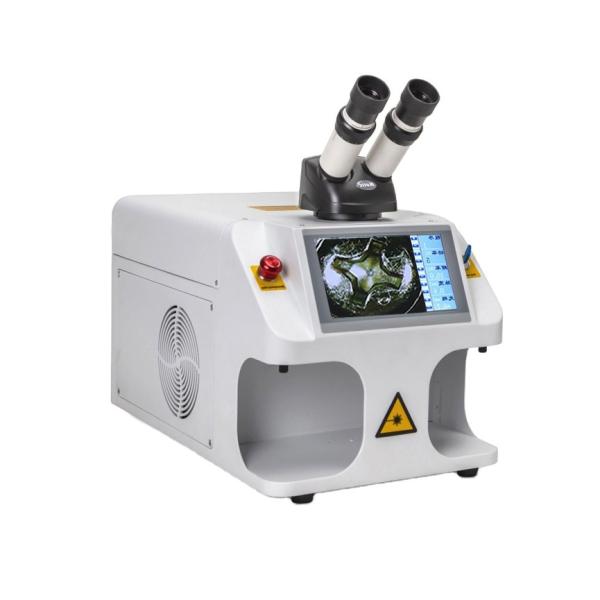

High Precision Laser Welding Machine 60w Metal Laser Welding Machine

Brand Name : HM

Model Number : HM-WLD

Certification : CE

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T, Western Union

Delivery Time : 7 work days

Packaging Details : 60*50*40cm

Laser type : YAG Laser Welding

Power Supply : 220V/50/60HZ

Usage : metal welding

Max. Output Power : 200W

Pulse Width : 15ms

Focal Spot Diameter : 0.6-3mm

Key Selling Points : Easy to Operate

Observing System : CCD+microscope

After-sales Service Provided : Online support, Free spare parts, Video technical support

Contact Now

Product Overview

High Precision Laser Welding Machine 60w Metal Laser Welding Machine

The advantage of jewelry laser welding machine:
- High efficiency: it is around 3-10 times faster than conventional welding machine.
- Un-contacted welding mode:  small welding spot with beautiful welding effect, do not injure the surrounding metal.
- Save cost: the electric energy of laser welder can be saved about 80%-90% compared with traditional machine and the processing cost can be reduced around 30%.
- Easy operation: the equipment use touch panel design, easy to modify process parameter, machine use CCD monitor and 10X microscope, easy to observe.

Product Specifications

Item	YAG jewelry laser spot welding machine
Power	60w
Laser cavity	Ceramic cavity
Pump Lamp	Single xenon lamp
Laser medium	Nd3+YAG
Laser wavelength	1064nm
Max power of single impulse	45J
Pulse width	0.1-15ms
Laser power frequency	0-20Hz
Instability of energy	<2%
Adjustable scope of laser spot	0.6-3.0mm
Continuous working time	16 hours
Cooling System	water chiller
Diemension	510295395mm
Weight	28KG

Product Configuration

Color HD CCD monitor with microscope

20X color enlargement welding effect display in HD screen, help you to observe the welding object and positioning the welding position easily

Emergency Switch

protect your safe,one button control with one button switch,simplify the control process, more convinent to use

Multi-Language for option

Our system language can be customized according to your requirement: 中文, English,Español, français,한국어, etc

Large working area

the inner space is large enough to add a small worktable and jewelry fixture

Welding Sample

ApplicationWidely used in Jewelry ring soldering, Precision Watch repair, Sand Hole repair, bracelet welding,Necklace repair,glass frame welding, electric components welding etc.

High Precision YAG Laser Welding Machine

60w Metal Laser Welding Machine
